AGRICULTURAL NOZZLES

ATR 60°

For fungicides and insecticides. Recommended for orchard and vineyards.

DEBITS TABLE CATALOGUE

Angle of 60° at 5 bar.
Hollow cone nozzle producing fine droplets.

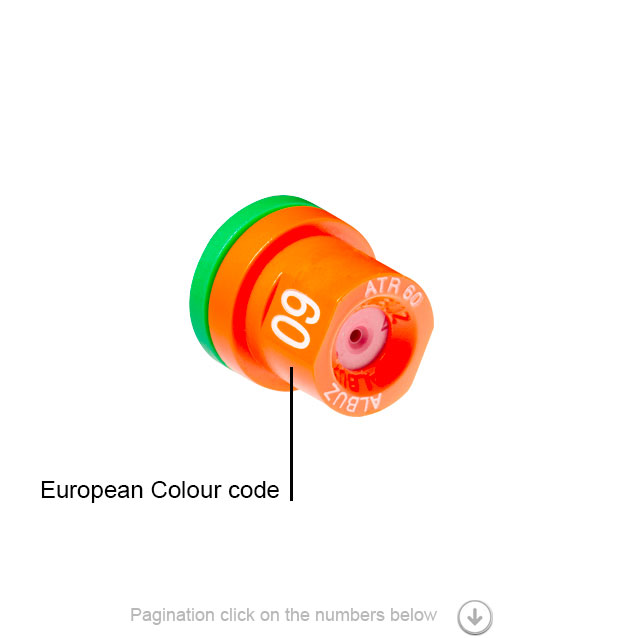

The green cap is used to specify that the nozzles has an angle of 60 degrees.
ALBUZ® durable pink ceramic allows high pressure spraying while maintaining nozzle performance and precision.

Easy dismantling for cleaning.
The angle of 60 degrees :
• Is mostly recommended during the use of the Shielded Sprayer or Tunnel sprayer.
• The drift is reduced on the top part of the target during the process
Can be used on a sprayer boom from 3 bar pressure.
Precision polished ceramic surfaces of internal components ensure perfect sealing of the swirl chamber to give precise flowrate.
Recommended pressure: 10 bar
Information about droplets size (see page 5)
